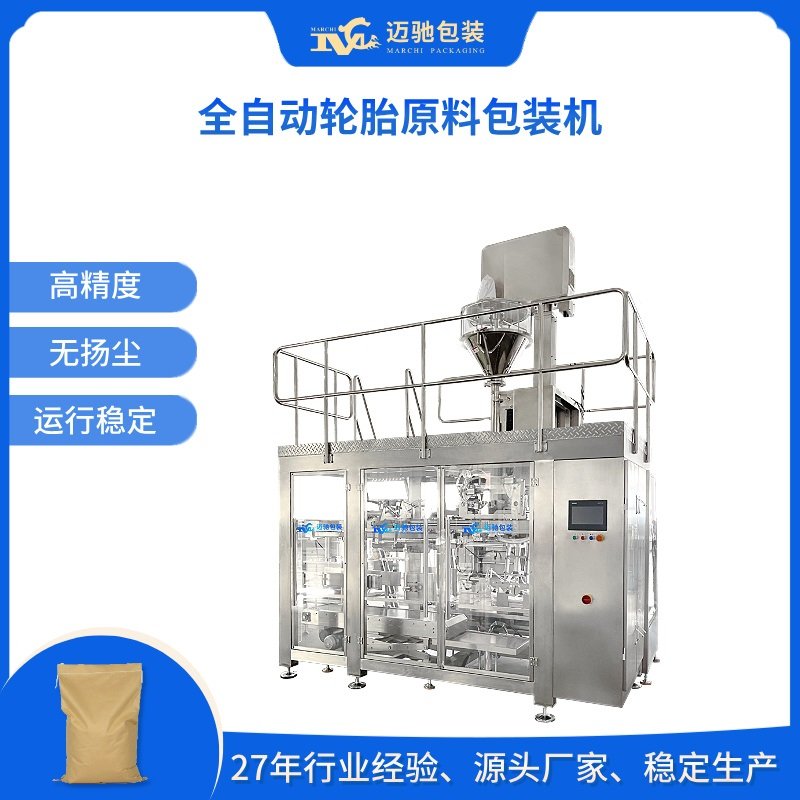

全自动轮胎原料包装机

产品详情
产品视频

可包装：

天然橡胶粉、合成橡胶粉、炭黑粉、硫磺粉、塑料粉、滑石粉、石蜡粉、树脂粉、抗氧化剂粉、促进剂粉、填料粉、氯丁橡胶粉、聚氨酯粉、氟橡胶粉、氢化橡胶粉、增塑剂粉、白炭黑粉、硅胶粉、钛白粉、聚乙烯粉、聚丙烯粉、胶黏剂粉、橡胶活化剂粉等。此外，设备还适用于化工原料、精细化工、聚合物、有机原料、涂料与油漆、染料及颜料、无机化工、塑料及制品、金属粉末等众多领域的物料包装。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

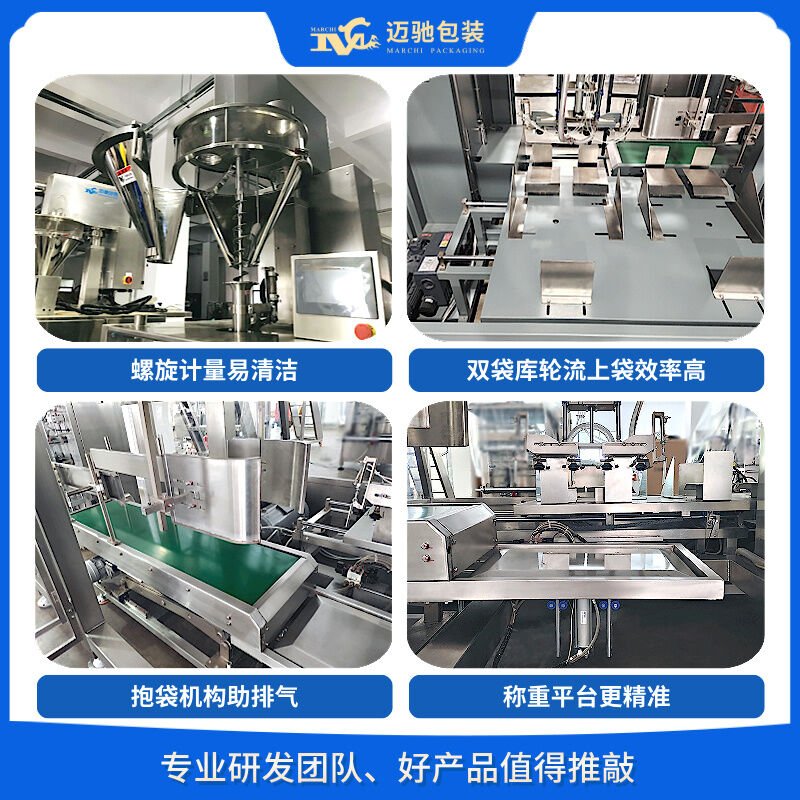

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

Our machines can package natural rubber powder, synthetic rubber powder, carbon black powder, sulfur powder, plastic powder, talc powder, paraffin wax powder, resin powder, antioxidant powder, accelerator powder, filler powder, neoprene rubber powder, polyurethane powder, fluoroelastomer powder, hydrogenated rubber powder, plasticizer powder, precipitated silica powder, silicone powder, titanium dioxide powder, polyethylene powder, polypropylene powder, adhesive powder, rubber activator powder, etc. In addition, our equipment is also suitable for packaging materials in many fields, including chemical raw materials, fine chemicals, polymers, organic raw materials, coatings and paints, dyes and pigments, inorganic chemicals, plastics and plastic products, metal powders, and more.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.
