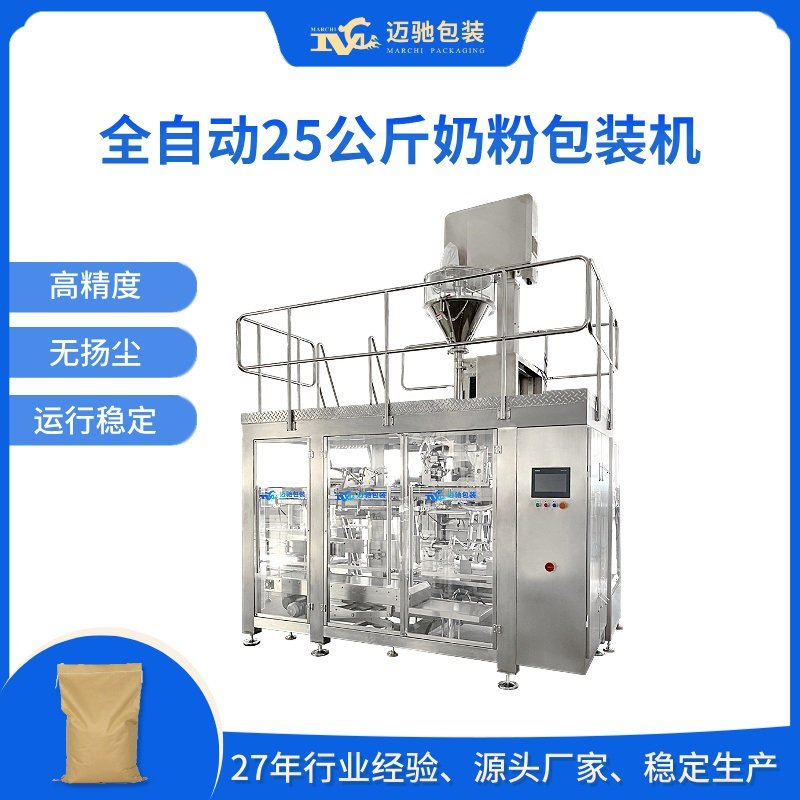

全自动25公斤奶粉包装机

产品详情
产品视频

可包装：

植脂末、奶粉、蛋白粉、麦芽糊精、乳清粉、炼乳粉、奶油粉、大豆蛋白粉、豌豆蛋白粉、胶原蛋白粉、大米蛋白粉、葡萄糖粉、白砂糖粉、果糖粉、玉米淀粉、抗性糊精、环糊精、羧甲基纤维素、黄原胶、瓜尔胶、单硬脂酸甘油酯、蔗糖脂肪酸酯、香兰素、奶香香精、可可粉、抹茶粉、植脂奶油粉、椰浆粉、碳酸钙、维生素预混料、麦芽粉、燕麦粉、黑豆粉等物料。

设备简介：

适合重量较大的物料包装，稳定性强，适应高负荷工作环境。

1.自动包装机，可实现自动计量，自动上袋、自动充填、自动热合缝包一体等一系列工作，不需要人工操作。节省人力资源，降低长期成本投入。也可与其它配套设备完成整条流水线作业。

2.称量机采用立式螺杆给料，由单螺杆构成。螺杆由伺服电机直接驱动保证计量的速度和精度。工作时，螺杆根据控制信号旋转供料；称重传感器和称重控制器进行称重信号的处理,并输出重量数据显示及控制信号。

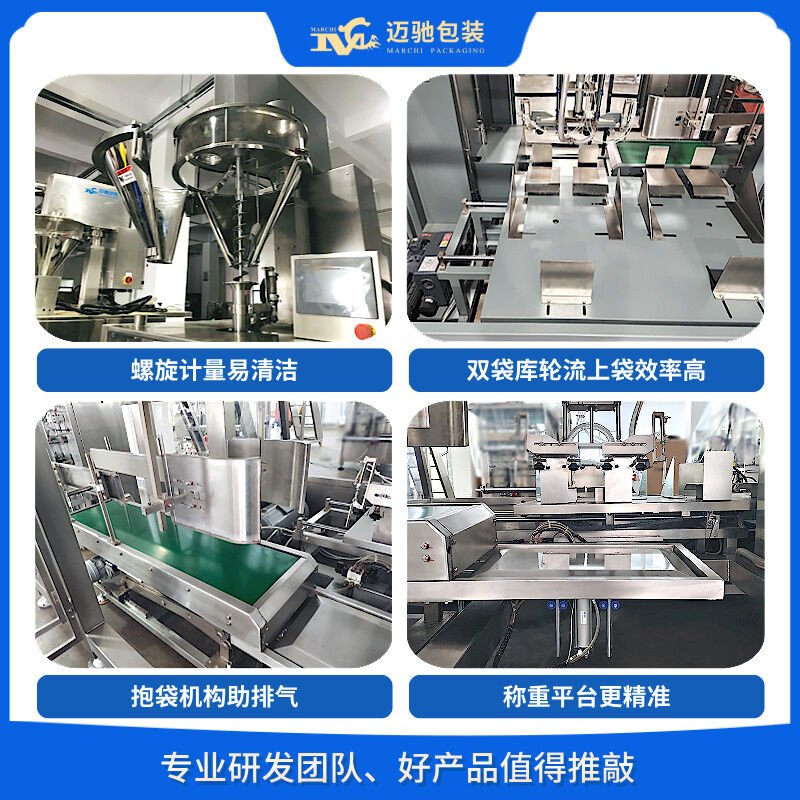

3.本机组由备袋库、取袋理袋装置、上袋机械手、夹袋下料装置、抱袋推动装置、袋口导向装置、真空系统及控制系统等组成；采用从备袋库取袋，袋子对中定位，袋子往前送，袋口定位，预开袋，上袋机械手插刀插入袋口，同时两侧气抓夹住袋口两侧，最后上袋。

设备参数：

设备型号：MCZD-25F

给料方式：单螺旋给料

包装重量(千克)：5～25

包装精度：≤±0.1～0.2%

包装速度(包/分)：1.5～2

袋子尺寸(毫米)：L:500～1000

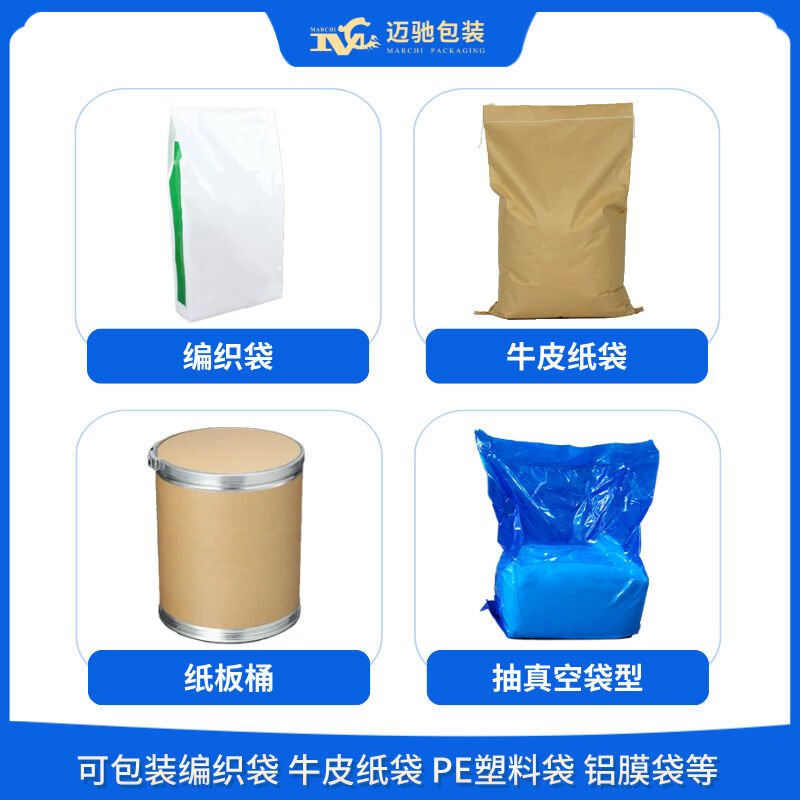

袋子材质：牛皮纸复膜袋、编织袋、塑料袋、编织袋等

Packaging Available:

vegetable fat powder, milk powder, protein powder, maltodextrin, whey powder, condensed milk powder, cream powder, soy protein powder, pea protein powder, collagen powder, rice protein powder, glucose powder, powdered white sugar, fructose powder, corn starch, resistant dextrin, cyclodextrin, carboxymethyl cellulose, xanthan gum, guar gum, glycerol monostearate, sucrose fatty acid ester, vanillin, milk flavor essence, cocoa powder, matcha powder, vegetable cream powder, coconut milk powder, calcium carbonate, vitamin premix, malt powder, oat flour, black bean powder, etc.

Equipment Introduction:

Suitable for packaging heavier materials, with strong stability, and adaptable to high-load working environments.

1、Automatic packaging machine that can achieve automatic measurement, automatic bagging, automatic filling, and automatic heat sealing, all without manual operation. Saves human resources and reduces long-term cost investment. It can also work with other auxiliary equipment to complete a full production line operation.

2、The weighing machine uses vertical screw feeding, consisting of a single screw. The screw is directly driven by a servo motor to ensure the speed and accuracy of measurement. During operation, the screw rotates to feed according to control signals; the weighing sensor and weighing controller process the weighing signals and output weight display and control signals.

3、This machine set consists of a bag storage library, bag picking and arranging device, bagging robotic arm, bag-clamping discharging device, bag-holding pushing device, bag mouth guiding device, vacuum system, and control system; it uses bag extraction from the bag storage library, bag centering and positioning, forward bag feeding, bag mouth positioning, pre-opening the bag, and the bagging robotic arm inserting a knife into the bag mouth, while both sides use air grippers to hold the sides of the bag mouth, and finally bagging.
