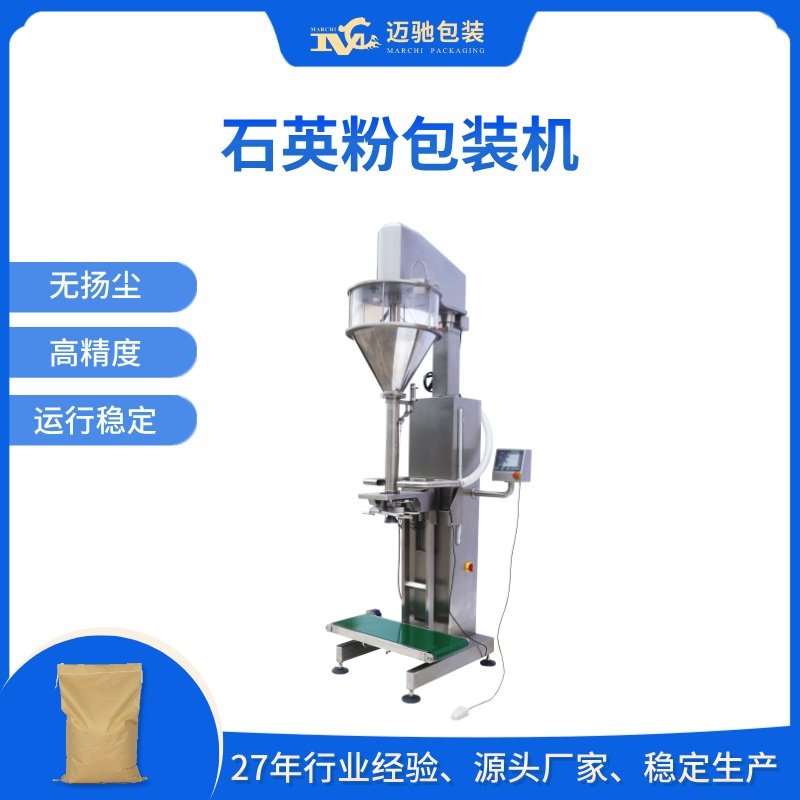

石英粉包装机

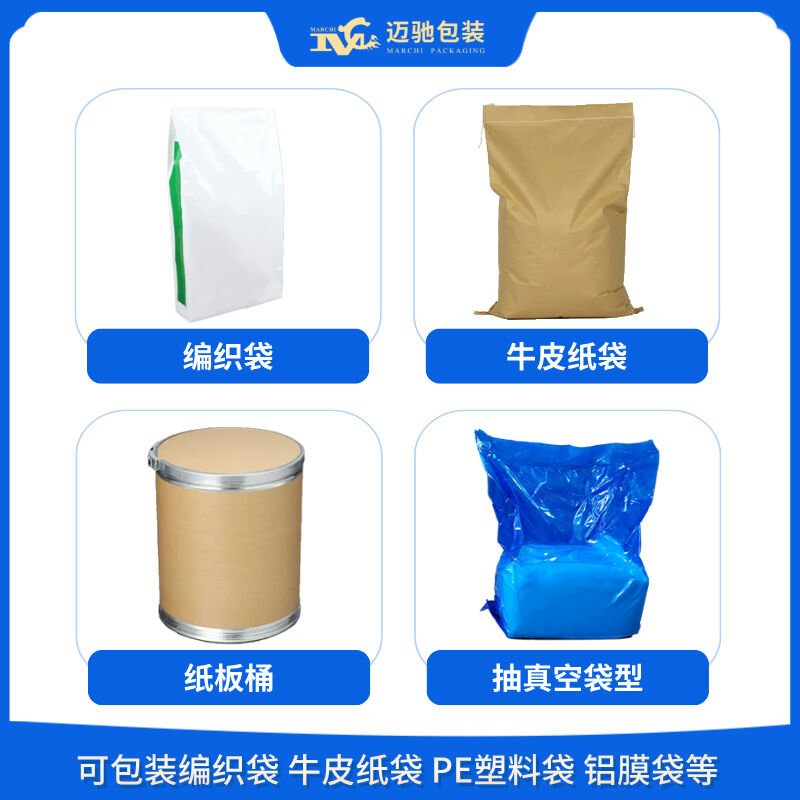

可包装：

石膏粉、白水泥粉、滑石粉、钛白粉、重钙粉、轻钙粉、长石粉、白云石粉、膨润土、陶土粉、粉煤灰、铝土矿粉、灰钙粉、氟石粉、硅藻土粉、硫酸钡粉、石灰粉、矿石粉等。

设备简介：

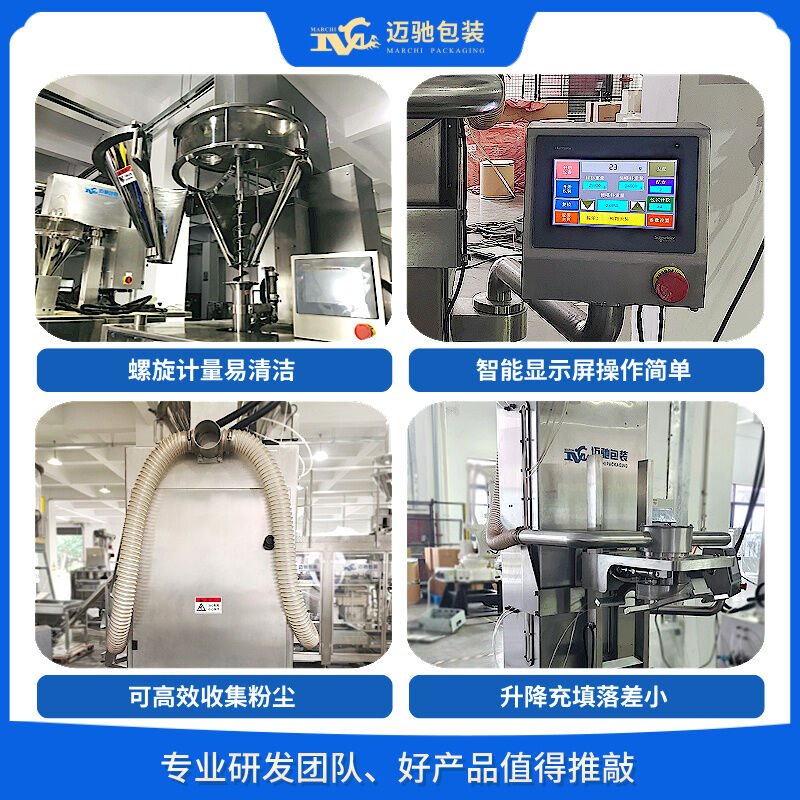

该机采用底充式灌装，灌装过程中从底部进行充填，落差小，无扬尘，适用于包装精度要求高的，或密度不均匀的，流动性好的或者流动性差的粉末、小颗粒物料。

1.全不锈钢结构，组合式或开启式透明料箱，无需工具即可方便拆洗

2.气动夹袋装置和托架装在重量传感器上，根据预先设定的重量进行快速和慢速充填

3.高反应速度的称重系统，保证高精度得以实现

4.PLC控制、触摸屏人机界面显示，操作简便

5.各种产品调整参数配方可储存，备后使用，储存10个配方

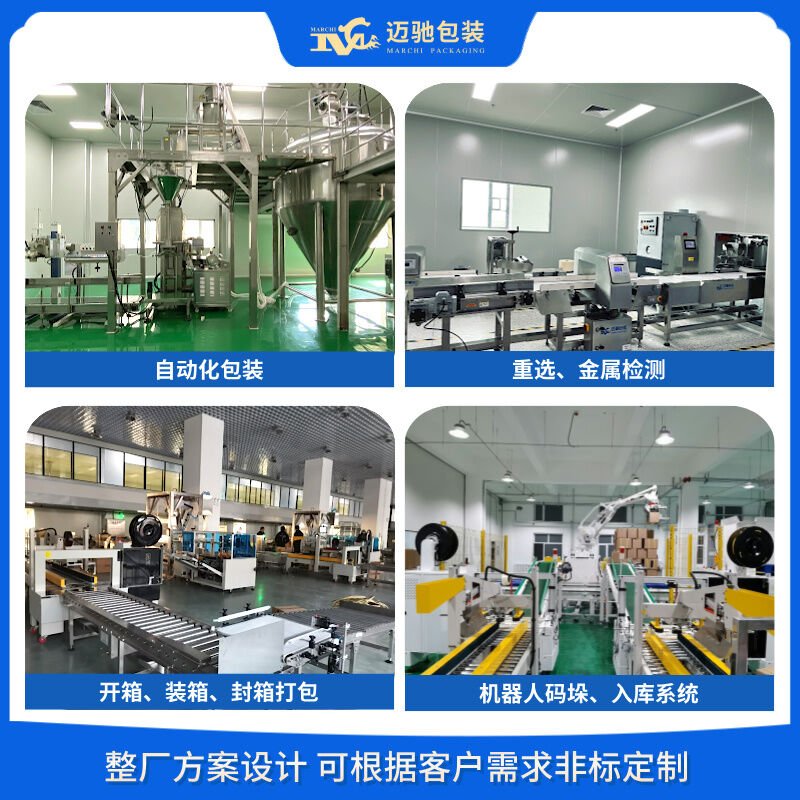

包装流程：

投料→混合→提升→包装→封口缝包机→重选→金检→码垛

设备参数：

设备型号：MC-DLLB-100L

包装重量(千克)：5～25

包装精度：±0.1～0.5%

包装速度(包/分钟)：1～4

电源：3P AC 208～415V 50/60Hz

整机功率(千瓦)：2.87

整机重量(千克)：450

Packaging Available:

gypsum powder, white cement powder, talc powder, titanium dioxide powder, heavy calcium carbonate powder, light calcium carbonate powder, feldspar powder, dolomite powder, bentonite powder, pottery clay powder, fly ash, bauxite powder, gray calcium powder, fluorite powder, diatomite powder, barium sulfate powder, lime powder, mineral powder etc.

Equipment Introduction:

This machine uses a bottom-filling method. During the filling process, it fills from the bottom with minimal drop, no dust, making it suitable for packaging applications that require high accuracy or uneven density, and materials with either good or poor flowability, such as powders and small particles.

Full stainless steel structure, modular or open transparent material hopper, easy to disassemble and clean without tools.

Pneumatic bag-clamping device and bracket mounted on the weight sensor, enabling fast and slow filling based on preset weight.

High-speed responsive weighing system ensures high accuracy.

PLC control with touch screen human-machine interface display for easy operation.

Various product adjustment parameters can be stored for later use, with the ability to store up to 10 formulas.

Packaging Process:

Ingredient Feeding → Mixing → Lifting → Packaging → Sealing and Stitching Machine → Re-weighing → Metal Detection → Palletizing

Equipment Parameters:

Model: MC-DLLB-100L

Packaging Weight (kg): 5～25

Packaging Accuracy: ±0.1～0.5%

Packaging Speed (bags/min): 1～4

Power Supply: 3P AC 208～415V 50/60Hz

Total Power (kW): 2.87

Total Weight (kg): 450
